Description
Akiles ProLam Plus 160 is a 6.3″ professional pouch laminator features heavy duty construction to ensure strength and durability, even under the hardest working conditions. Laminate your precious photographs using the 6.3″ throat for easy pouch feeding. The dual heat system extends more efficient lamination at lower temperatures. Includes a cold lamination switch for heat sensitive materials such as pictures and ink jet materials.
Additionally, the ProLam Plus 160 features four silicon rollers that eliminate the need to use carriers. Its built in electronic circuit board allows for quick and exact temperature adjustments while the gradual temperature control allows simple temperature adjustment when changing pouch thickness, pouch composition, or when laminating different materials.

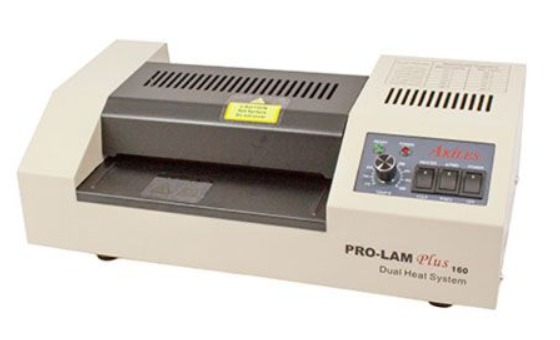

Please Note: ProLam Plus 330 is pictured above, this is for the ProLam Plus 160. The 160 offers a 6.3″ throat while the 330 offers a 13″ throat. ProLam Plus 330 also available (model# APL-330).
Features:
- Photo Ready: Heated-rollers allow a balanced heat distribution during laminating process, thus guaranteeing a crystal clear, bubble-free laminating result even when you laminate photos & ink-jet printouts.
- Dual Heat System (heated rollers & heat plate combination): For a more efficient lamination at lower temperatures. Allows for a perfect lamination of all standard pouch thicknesses (from 3 mil up to 10 mil).
- Electronic Circuit (PCB) & Gradual Temperature Control: For a fast, consistent and easy fine-tuning of temperature. Ideal when operator requires frequent changing of pouch thickness, pouch composition or when laminating different materials.
- Forward / Reverse Switch: Allows easy corrective action for jams. i.e. when document is improperly fed or temperature was set too high.
- Heat / Cold Switch: Offers cold lamination function.
- Metal Gears: To guarantee strength and durability.
- Steel Gears: Guarantee strength and durability.
- Silicon Rollers: Provide the flexibility of laminating with or without a carrier.
- Metal Cover (Dual Color): For a longer lasting lifespan & a more professional, heavy duty look.
Specifications:
- Max Laminating Width: 6.3″ (160 mm)
- Max Laminating Film Thickness: 3 to 10 mil
- Max Laminating Speed: 21″ per minute / .35″ per second
- Max Laminating Thickness: 0.078″ (2 mm)
- Warm Up Time: 5 minutes
- Temperature Control: Electronic (PCB)
- Laminating Heat Range: 176 – 320 degrees Fahrenheit
- Adjustability Features: Variable temperature settings, hot and cold lamination
- Dimensions: 8.5″ L x 14.5″ W x 4.5″ H
- Cover: Metal
- Weight: 14 lbs.
- Warranty: 1 year limited
